Linear/GTO SWR Swing Gate Parts

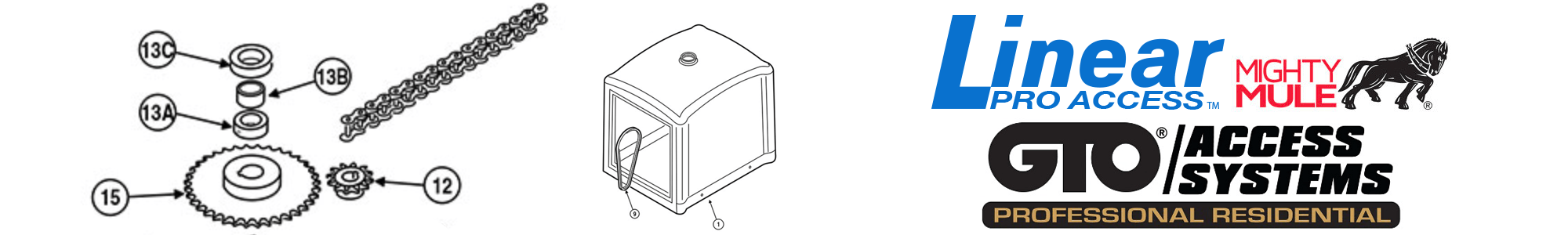

For the lowest prices on authentic Linear/GTO SWR Series swing gate operator parts, North Shore Commercial Door is your budget solution. We carry only new OEM Linear/GTO parts, and we ship fast to customers in a hurry. Use our parts-by-numbers list or interactive parts-by-picture illustrated diagrams to order the right part for your repairs or upgrades.

We carry SWR model Linear/GTO residential gate opener motors, capacitors and installation hardware. Order Linear APeX motor modules and mounting plates. Order parts for your SWR Series 2100, 2200, 2300, 2400 or 2500 operator.

During weekday business hours, use our live chat feature to ask our trained pros about parts compatibility or installation. Or, call or email our Ohio headquarters to connect with a friendly, knowledgeable staff member who specializes in residential-duty gate openers.

Each year, our company wins top online retail ratings for low prices and outstanding customer service. That makes us the go-to choice for professional installers and DIY homeowners on a budget. Save more by clicking on our "Coupons" page.
Key Part # Description
1 2300-925-BLACK Linear 2300-925-BLACK Operator Cover
2 2300-926-BLACK Linear 2300-926-BLACK Rain Cap
3 2100-2030-BT Linear 2100-2030-BT Access Door, Black (no lock or reset button)
3A 2510-354 Linear 2510-354 Plunger Reset Assembly
2500-2240 Linear 2500-2240 Plunger Reset Button
2500-2241 Linear 2500-2241 Plunger Extension Only
3B 2200-790 Linear 2200-790 Lock for Cover, with Keys
2200-824 Linear 2200-824 Extra Keys
4 2110-785 Linear 2110-785 Frame Assembly
5 2400-509 Linear 2400-509 Socket Head Cap Screw, 3/8-16 x 1-1/2
7 MOTORS
2510-274 Linear 2510-274 Motor Assembly, 1/2 HP, 115 VAC, with Harness
2510-275 Linear 2510-275 Motor Assembly, 1/2 HP, 230 VAC, with Harness
7A CAPACITORS
2500-261 Linear 2500-261 Capacitor for 115 VAC
2500-552 Linear 2500-552 Capacitor for 230 VAC
7B 2200-872 Linear 2200-872 Capacitor Clamp
8 2200-132 Linear 2200-132 Pulley, 2", 5/8" bore
9 2200-937 Linear 2200-937 V-belt, 4L, 26" Cogged
10 2200-926 Linear 2200-926 Gear Reducer, 60:1
11 2100-388 Linear 2100-388 Pulley, 5’’, 5/8’’ bore
12 2200-978 Linear 2200-978 Sprocket, 40-B-13 DBL, 1" bore, 2 SS
13 2100-2020-PLT Linear 2100-2020-PLT Drive Shaft
13A 2200-015 Linear 2200-015 Shaft Collar, 1" diameter, 9/16 LTB
13B 2100-519-PLT Linear 2100-519-PLT Sleeve Spacer
13C 2200-016 Linear 2200-016 Moisture Seal
14 2200-274 Linear 2200-274 Pillow Block Bearing, 1" diameter
15 2200-376 Linear 2200-376 Sprocket, 40-B-36, 1" bore
16 2200-972 Linear 2200-972 #40 Chain, 24 Links
2200-006 Linear 2200-006 #40 Master Link

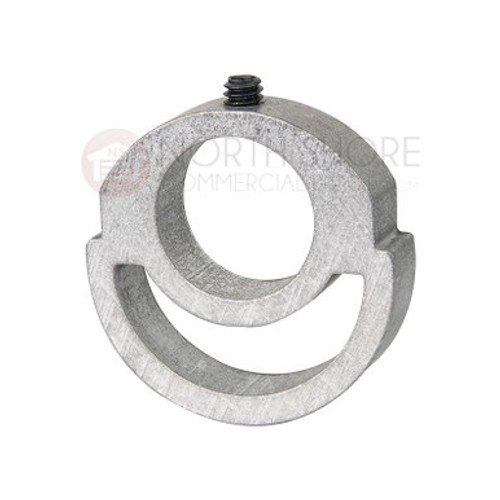

17 2100-1748 Linear 2100-1748 Limit Cam
18 2200-015 Linear 2200-015 Shaft Collar, 1" diameter, 9/16 LTB
19 2500-2347 Linear 2500-2347 Limit Switch
20 2510-422 Linear 2510-422 115 VAC Power Box Assembly
2510-430 Linear 2510-430 230 VAC Power Box Assembly
2500-2411 Linear 2500-2411 Power Switch Only, 115 VAC and 230 VAC
2500-2413 Linear 2500-2413 Power Outlet (only available on 115 VAC Models)DISCONTINUED
2500-212 Linear 2500-212 115 VAC - 24 VAC Power Transformer
2500-791 Linear 2500-791 230 VAC - 24 VAC Power Transformer
21 2100-2111 Linear 2100-2111 Controller Latch
22 2100-2108 Linear 2100-2108 Limit Switch Mounting Bracket
23 2100-2024 Linear 2100-2024 Accessory Mounting Shelf
2200-874-PLT Linear 2200-874-PLT Hinge, Male for Control Box
25 2500-2393 Linear 2500-2393 APeX Module
2500-2399 Linear 2500-2399 APeX DC Motor Module
2100-2104 Linear 2100-2104 APeX Mounting Plate
2300-1025 Linear 2300-1025 Plastic Cover Only
2510-423 Linear 2510-423 Knob Kit
2510-420 Linear 2510-420 Stop/Reset Switch and Bracket Assembly
26 620-101416 Linear 620-101416 Alarm
27 2510-427 Linear 2510-427 115 VAC Wiring Harness Assembly (not shown)
2510-429 Linear 2510-429 230 VAC Wiring Harness Assembly (not shown)
