LiftMaster AUXCARD Auxiliary Contacts Option Board

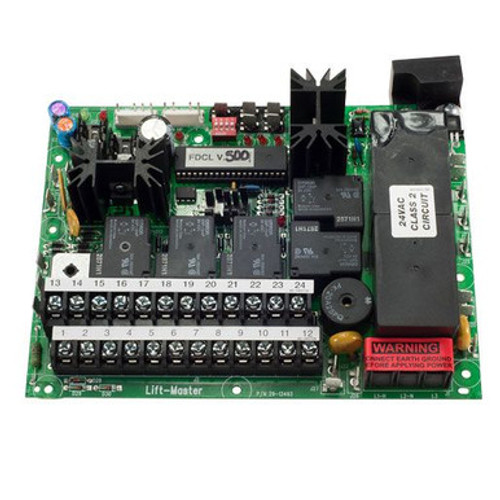

LiftMaster AUXCARD Auxiliary Contacts Option Board | LiftMaster AUXCARD Auxiliary Contacts Option Board is a printed-circuit board additional device for later model LiftMaster Commercial Door Operators. Card supports the use of accessories or auxilliary devices to the LiftMaster Logic board 4 and 5 LiftMaster Commercial Door Operators. Provides additional contacts for accessories. Has added advantage of allowing on/off of these contacts to be controlled by a remote. North Shore Commercial Door has the accessories and parts needed for any operator.

PRODUCT HIGHLIGHTS | SPECS | TECHS

• Device for allowing the use of accessories on LiftMaster Commercial Door Operators
• Power for accessories controlled by AUXCARD contacts need external power source
• Needed power source and strength will depend on the accessory
• Physcially implants directly to card interface on mother board
• Wire to terminals using #14 AWG copper wire
• Maximum contact rating of 10A at 240 Vac | Not applicable for incandescent loads
• N4 or N4X devices using AUXCARD cannot accommodate remotely turned on/off of relays
• Contains both NO and NC contacts
• Relay Functionality Specs
• Status: While closing:
• open 2 -1 closed
• (OPEN or A' relay contacts)
• open 2 - 3 opened
• -
• Status: While closing:
• open 2 -1 closed
• (CLOSE or B' relay contacts)
• open 2 - 3 opened
• -
• Status: Operator powered down
• open 2 - 1 opened
• open 2 - 3 closed
• close 2 -1 closed
• close 2 -3 closed
• -
• Status: Operator powered on and door in motion
• open 2 - 1 opened
• open 2 - 3 closed
• close 2 -1 closed
• close 2 -3 closed
• -
• N4 and N4X (NEMA 4 AND NEMA 4X) operators
• Status: While open or closing
• Open Terminals not available for Auxiliary use
• close 2 - 1 opened
• close 2 - 3 closed
